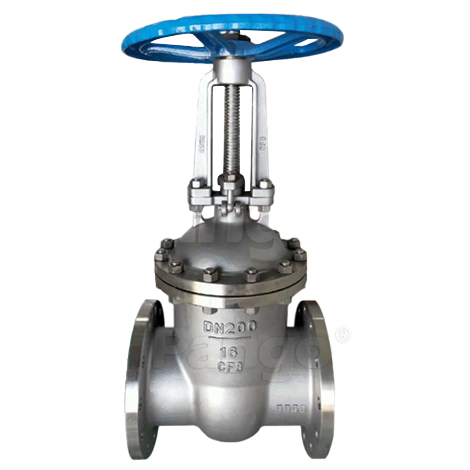

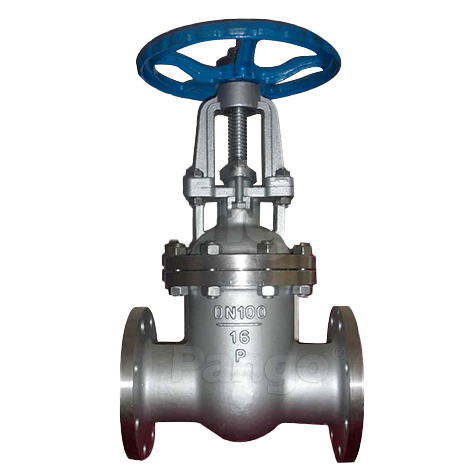

Stainless Steel Gate Valve

Size Range:DN50-DN400

Pressure: PN16/150LB

Body Material:CF8

Seat Material:CF8/Alloy Steel

Disc Material:CF3/CF3M/CF8/CF8M

Stem Material:2Cr13/ SS304/SS316

Features: Water treatment, petrochemical, food and medicine, electric energy, metallurgy, etc.

Get a Quote

Product advantages

1. Precision casting valve body, smooth appearance, 2 times shot blasting after appearance processing, no trachoma.

2. CNC lathe processing of internal parts, guaranteed accuracy.

3. Heavy type valve body.

4. Inverted seal treatment of contact surface between bonnet and stem to avoid leakage.

5. The corrosion resistance was improved due to the body adopt pickling passivation treatment.

6. Each valve will be inspected for shell and seal pressure before leaving factory.

Parameters

Parameter Information：

1. Executive standard：

Name	Design	Face to Face	Pressure Test	Connect Flange
Reference standard	GB/T 12234/API 600	GB/T 12221/ASME B16.10	GB/T 13927/API 598	JB/T 79/ASME B16.5

2. Material of Main Parts:

Name	Body	Disc	Stem	Seat	Handwheel
Material	CF8	CF8	SS304	SS304	DI

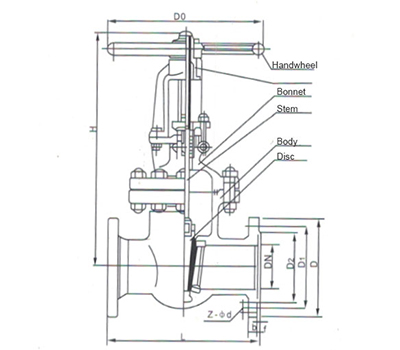

3. Dimensions：
